How to Create an Amazon SNS Topic Using AWS Management Console

Advertisements

In this article, I will take you through the steps to create an Amazon SNS topic using AWS Management Console but before that let's understand how Amazon SNS service provides message delivery from publisher to subscriber using topics. The concept of topic is a very important one in Producer-Consumer System where Producer produces the messages and broadcast it to a logical channel called topic. Any of the AWS Services want to consume those messages has to subscribe to that topic first. After subscribing the endpoint begins to receive the messages published to the associated topic.

What is Amazon SNS

Amazon Simple Notification Service (Amazon SNS) is a managed service that provides message delivery from publishers to subscribers (also known as producers and consumers). More on official documentation.

Advertisements

What is Topic

An Amazon SNS topic is a logical access point that acts as a communication channel. A topic lets you group multiple endpoints (such as AWS Lambda, Amazon SQS, HTTP/S, or an email address).

Types of SNS Topic

There are two types of SNS topic:-

Advertisements

a) FIFO

  • The ordering is based on first-in first-out basis.
  • It has high throughput up to 300 publishes/second.
  • It supports exactly once message delivery.
  • It only supports SQL subscription protocol.

b) Standard

Advertisements
  • The message ordering is based on best effort mechanism.
  • It guarantees at least once message delivery.
  • It has the highest throughput in publishes/second
  • It supports wide range of subscription protocol like SQS, Lambda, HTTP, SMS, email, mobile application endpoints etc.

SNS Options and Settings

a) Encryption

By default, Amazon SNS provides in-transit encryption. You will also have the option to enable server side encryption along with the at-rest encryption to your topic.

Advertisements

b) Access Policy

Access Policy defines who can access your topic. By default, the owner who created the topic can only publish or subscribe to the topic.

c) Delivery Retry Policy(HTTP/S)

This policy is used to define how Amazon SNS retries failed deliveries to HTTP/S endpoints.

d) Delivery Status Logging

This option is used for configuring the logging of message delivery status to Cloudwatch logs.

How to Create an Amazon SNS Topic Using AWS Management Console

How to Create an Amazon SNS Topic Using AWS Management Console

Also Read: Object Storage Vs Block Storage - Understanding the difference

Step 1: Prerequisites

a) You should have a valid AWS Account.

b) You should have sufficient IAM access to create resources in your account.



Step 2: Login to AWS Management Console

First you need to go to AWS Management Console login page and provide your credentials. Once given, Click on Sign In.



Step 3: Open SNS Console

After successful authentication, you will land into AWS Management Console page. There you can search SNS service in the search box like below. Once the Simple Notification Service shows up, you can click on it. It will take you to the SNS Console.

How to Create an Amazon SNS Topic Using AWS Management Console 2





Step 4: Create a Topic

On SNS Dashboard, you can click on Create Topic to create your first SNS topic. Here you need to first provide a meaningful topic name. We are giving the name as ExampleTopic. Then Click on Next Step.

How to Create an Amazon SNS Topic Using AWS Management Console 3

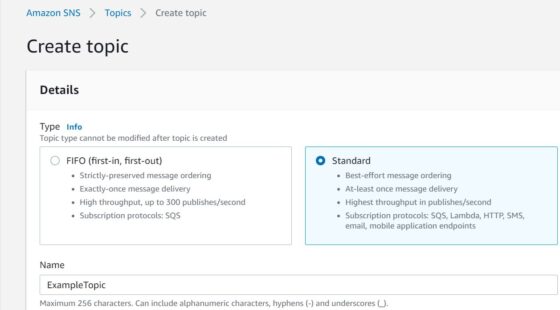

In the next window, you will be asked to choose the type of topic. You can either choose FIFO or Standard type. For now we are choosing Standard type.

How to Create an Amazon SNS Topic Using AWS Management Console 4

If you scroll down a bit, you will see a lot of other options to set. For example, you can set the Encryption, Access Policy, Delivery retry policy, Delivery Status logging etc.

How to Create an Amazon SNS Topic Using AWS Management Console 5

You can choose to set any of these options as per your requirement and then Click on Create Topic.

How to Create an Amazon SNS Topic Using AWS Management Console 6

Wait for 1-2 mins for the topic to be created successfully. Once created, it will show like below.

How to Create an Amazon SNS Topic Using AWS Management Console 7



Step 5: Delete a Topic

You can also choose to delete a topic in case it is no longer required. For example, here if you want to delete ExampleTopic then you need to first select it and then Click on Delete as shown below.

How to Create an Amazon SNS Topic Using AWS Management Console 8

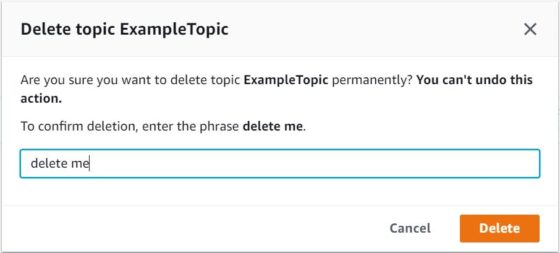

It will ask for confirmation by entering delete me in the confirmation box and then Click on Delete.

How to Create an Amazon SNS Topic Using AWS Management Console 9

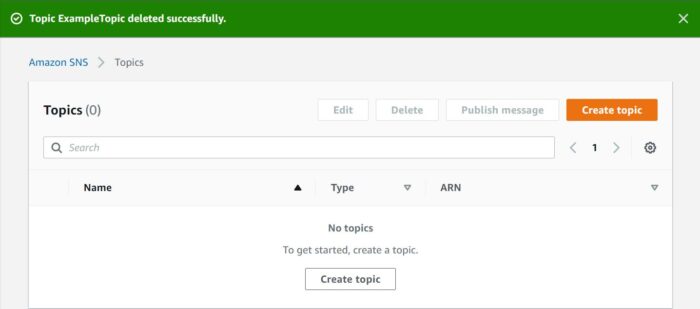

After a moment, it will be successfully deleted as shown below.

How to Create an Amazon SNS Topic Using AWS Management Console 10
